Altronix R2416600ULCB 24AC25A/28AC20A,16PTC,UL,PS
Highlight title
Text to highlight a key feature of your product
Description
Description

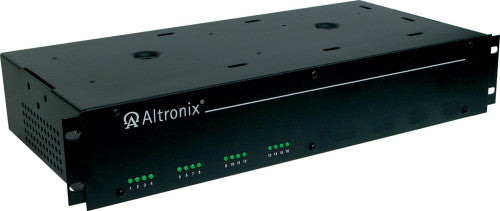

Altronix R2416600ULCB 24AC25A/28AC20A,16PTC,UL,PS
R2416600ULCB provides 24VAC or 28VAC distributed via sixteen (16) PTC protected Class 2 Rated power limited outputs for powering CCTV cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 6A.
Output
Sixteen (16) PTC protected Class 2 Rated power limited outputs (auto-resettable).
24VAC @ 25A (600VA) supply current (0.7812A per device, 2.5A max.) or 28VAC @ 20A (560VA) supply current (0.625A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VDC: 307 BTU/Hr.
28VDC: 287 BTU/Hr.
System AC input VA requirement: 690VA.
Features
Sixteen (16) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
3-wire grounded line cord.
Removable terminal blocks with locking screw flange.
