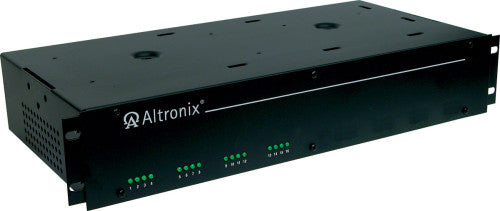

Altronix R2416220 24V@7A OR 28V@6A/16FUSE/220IN
Altronix R2416220 24V@7A OR 28V@6A/16FUSE/220IN is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Altronix R2416220 24V@7A OR 28V@6A/16FUSE/220IN
Highlight title
Text to highlight a key feature of your product
Description
Description
R2416220 24V@7A OR 28V@6A/16FUSE/220IN
R2416220 provides 24VAC or 28VAC distributed via sixteen (16) fuse protected outputs for powering CCTV cameras, heaters and other video accessories.
Input
220VAC, 50/60Hz, 1.0A.
Output
Sixteen (16) fuse protected outputs.
24VAC @ 8A (200VA) supply current (0.5A per device, 3.5A max.) or 28VAC @ 7A (200VA) supply current (0.4375A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VDC: 90 BTU/Hr.
28VDC: 90 BTU/Hr.
System AC input VA requirement: 220VA.
Features
Sixteen (16) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
3-wire grounded line cord.
Removable terminal blocks with locking screw flange.
Spare fuses provided.
