Altronix R1224DC16CB 12/24VDC 18A 16 PTC RACK

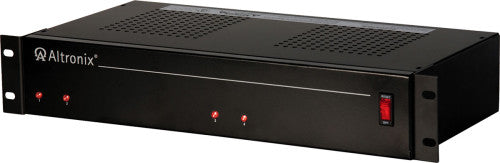

Altronix R1224DC16CB Rack Mount Power Supply provides 12VDC or 24VDC distributed via sixteen (16) PTC protected Class 2 Rated auto-resettable outputs for power-limited installation.
Input
115VAC 60 Hz, 3.74A @ 12VDC or 6.26A @ 24VDC.
Output
12VDC @ 4.5A per channel of 4 outputs or 24VDC @ 4.5A per channel of 4 outputs. (2A max. per individual output).
18A total supply current.
Sixteen (16) Class 2 Rated PTC protected power limited outputs.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Temperature
Operating temperature: 0° C to 49° C ( 32° F to 120° F).
Storage temperature: -20° C to 70° C ( -4° F to 158° F ).
BTU/Hr. (approx.):
12VDC - 130 BTU/Hr.
24VDC - 260 BTU/Hr.
System AC input VA requirement: 720 VA.
Visual Indicators
Power LED indicators per group of 4 outputs.
Special Features
Illuminated power disconnect circuit breaker with manual reset.
Removable terminal blocks w/locking screw flange.
IEC 320 - 3-wire grounded line cord (detachable).
3U rack mount chassis for use in standard EIA 19" rack.
Ease of installation saves time and eliminates costly labor.
