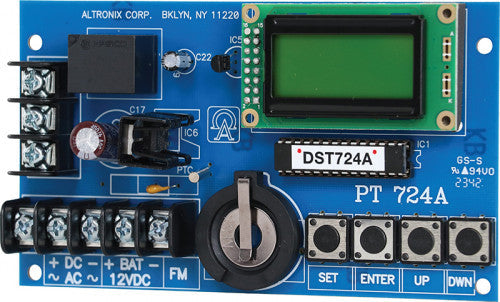

Altronix PT724A 365DAY 24HR TMR REPLACES PT724

Altronix PT724A 365DAY 24HR TMR REPLACES PT724 PT724A is an extremely versatile 24 Hour 365 Day Event Timers designed to support a wide range of applications: Home and Building Automation, Security, Access Control, Lighting Control, Etc.The PT724A are equipped with an independently controlled form "C" relay contact that provides many latching and/or momentary operations during a program schedule of your choice. Events may be set for single or multiple operations on a daily and/or weekly schedule. Input 12 to 24 volts AC or DC operation Relay Form "C" relay contacts are rated 10A @120VAC/28VDC. Standby current: 10mA (relay off) 50mA (relay on). Features EE Prom memory protects against loss of programming due to power failure. Accurate crystal controlled clock. Momentary and/or Latching Events. 50 individually programmed daily/weekly events. Block programming capacity can accommodate a total of 350 events per week. 10 programmable Holiday dates. "First man in" option. Standard or Daylight Savings Time settings. Automatic compensation for leap year. Visual Indicators Alphanumeric LCD display simplifies programming. Battery Charging Built-in charger for 12VDC sealed lead acid or gel type batteries(Max charge current 100mA). Optional lithium battery backup maintains clock. Order Altronix part # LB2032. (Batteries are sold separately). Temperature Operating: -20ºC to 49ºC ( -4ºF to 120ºF). Storage: -25ºC to 70ºC ( -13ºF to 158ºF). Relative Humidity: 85% +/- 5%.
