Altronix | SKU:
PM212
Altronix PM212 12VDC/1A SUPERVISED PS/CHGR
Regular price
$29.50
Unit price
/
Unavailable
Altronix PM212 12VDC/1A SUPERVISED PS/CHGR is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Altronix PM212 12VDC/1A SUPERVISED PS/CHGR
Regular price
$29.50
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description
Altronix PM212 12VDC/1A SUPERVISED PS/CHGR

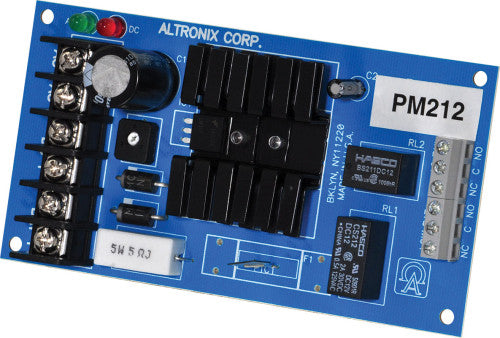

Altronix PM212 supervised linear power supply/charger converts a low voltage AC input to a filtered and regulated continuous power-limited output.
Input
Transformer requirements:
- 16VAC/20VA for 12VDC output (Altronix Model # TP1620).
Output
12VDC output.
1A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails (zero voltage drop).
PTC battery protection.
(Batteries are sold separately).
Supervision
AC fail supervision (form "C" contacts).
Low battery supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 6 BTU/Hr.
