Altronix PDS8CB 8 PTC, 2 INPUT PWR DIST MOD

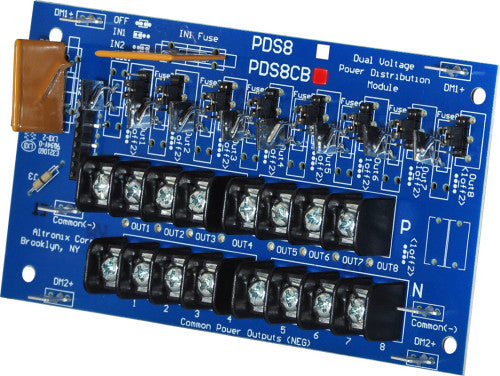

PDS8CB dual input power distribution module is designed to steer the power from either two (2) low voltage AC or DC power sources. This power is distributed over a total of eight (8) PTC protected outputs.
Power Inputs
Input 1 and Input 2 Voltage range: 5VDC to 24VDC up to 9A each or 16VAC to 28VAC up to 9A each.
Outputs
Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
PTC protected outputs rated @ 2A. (total output current should not exceed max current rating of power supply employed).
Surge suppression.
LED Indicators
Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red and Green).
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
