Altronix PD8ULCB UL 8 OUT POWER DIST UNIT W/CB

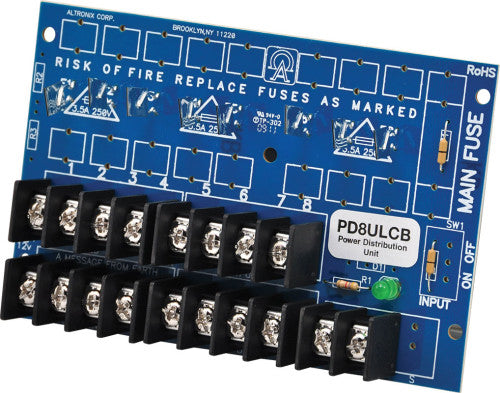

Altronix PD8ULCB UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into eight (8) PTC protected Class 2 Rated powerlimited outputs.
Input
12VDC or 24VDC, up to 10A or 24VAC or 28VAC, up to 12A.
Outputs
Eight (8) individually PTC protected outputs @ 2A per output max. current (total output current should not exceed max. current rating of power supply employed).
PTCs rated @ 2A/250V.
Visual Indicators
Power on green LED indicator.
Electrical
Operating temperature: 0 to 49° C (32 to 120° F).
Storage - 20 to 70° C ( - 4 to 158° F).
Relative Humidity 85% +/- 5%.
