Altronix PD8UL UL 8 OUT POWER DISTRIB UNIT

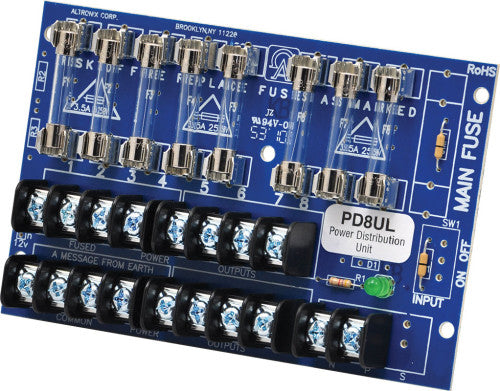

Altronix PD8UL UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into eight (8) individually fuse protected outputs.
Input
Voltage Range: 12VDC or 24VDC, up to 10A or 24VAC or 28VAC, up to 12A.
Outputs
Eight (8) individually fused protected outputs.
2.5A per output max.
Total output current should not exceed max current rating of power supply employed.
Fuses are rated @ 3.5A/250V.
LED Indicators
Power LED indicator.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
