Altronix PD16W 16 Fused Output Power Distribu

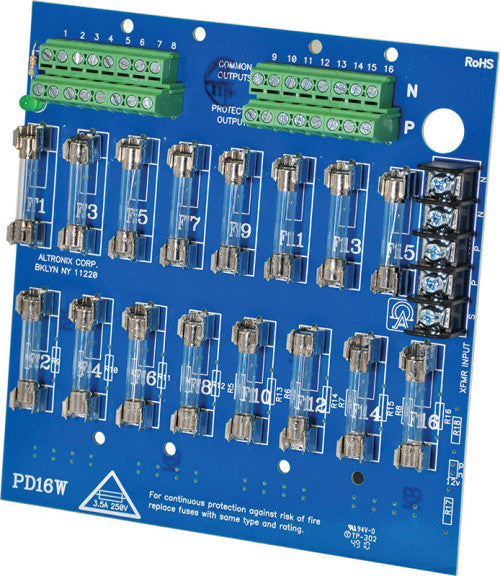

Altronix PD16W UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into sixteen (16) individually fuse protected outputs.
Input
12VDC or 24VDC up to 10A or
24VAC or 28VAC, up to 12A.
Outputs
Sixteen (16) fuse protected outputs.
2.5A per output max.
Total output current should not exceed max current rating of power supply employed.
Fuses are rated @ 3.5A/250V.
Visual Indicators.
Power On green LED indicator.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
