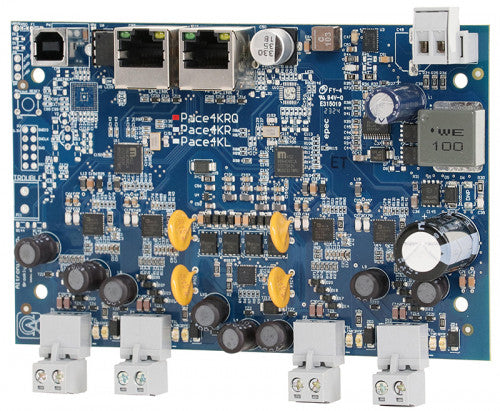

Altronix Pace4KRQ is a 4-port SPE (Single Pair Ethernet) Media Adapter/Switch that transmits data and power via twisted pair (2-wire, UTP or shielded) in a PoE(+) compliant format. In addition to new SPE (UTP) Ethernet network installations for Surveillance-cameras/Security/Industrial/BMS/HVAC/Intercoms and Elevator Controllers, applications include upgrading of legacy networks, i.e. LONworks, RS485, 4-20ma Control Loops, etc. by using the existing two wire cabling, thus saving rip-out & reinstallation costs.

Operationally, the Pace4KRQ is connected to a PoE midspan/endspan switch at the headend and passes network data and power to the remote PaceKT Series transceiver(s) over UTP up to 1km (1,000m, 3,280 ft.). Pace1KT & Pace2KT transceivers can connect to one or two remote devices, such a as a camera(s) or controllers, respectively. For non-enable PoE devices, only data will be transmitted. Cable distances and multi-node device drop-offs are facilitated by using one of the two Pace2KT ports for the continued network link in a daisy chain manner.

For a direct T1L remote device, use Pace1K12/24S adapter to split T1L data & power for a
compatible device

Pace4KRQ features built-in LINQ™ Network Power Management which facilitates monitoring, reporting and control of power/diagnostics.

Input
12/24V power supply.
24VDC: supports 100W Total POE output power.
12VDC: supports 60W Total POE output power.
(For 24V/12VDC Power Supply add a minimum of 15% margin to input power).

UTP Connection
Wire type: Twisted pair (2-wire, UTP or shielded)
Distance: 1km (1,000m, 3,280 ft.), 16/2 AWG or higher @ 10Mbps

Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e or higher.
Distance: up to 100m from midspan.
Speed: 10/100BaseT, half/full duplex, auto negotiation.
PoE: IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (25W) delivered to device by Pace4KRQ. Power provided by Pace4KRQ to Pace transceiver by PoE protocol.

LINQ Technology:
Remote network power management allows for device reset and monitoring
Provides local and/or remote access to critical information via LAN/WAN
Email and Windows Dashboard Alert notifications report real-time diagnostics
Event log tracks history

VLAN:
Multiple management VLAN assignment 802.1Q Tagged VLAN
Up to 10 VLAN groups. ID Range 2-4095

LED Indicators
Yellow and Green LED (by RJ45 jack):
IP Link status, 10/100Base-T/active.
Link LED for each UTP port.

Electrical
Temperature:
Operating: – 40º C to 75º C (– 40º F to 167º F).
Storage: – 40º C to 75º C (– 40º F to 167º F).

Relative Humidity: 85% +/- 5%.
Operating Altitude: – 304.8 to 2,000m.
