Altronix PACE4KL 4PT 1KM T1L SPE ADP/SW 2UPLINK

Altronix PACE4KL 4PT 1KM T1L SPE ADP/SW 2UPLINK

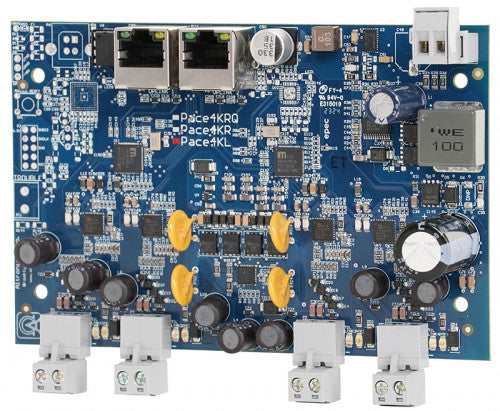

Altronix Pace4KL is a SPE (Single Pair Ethernet) 4-port T1L Media Adapter/Switch that enables connecting up to four (4) 10Base-T1L, IEE802.3cg compliant devices such as Security/Industrial/BMS/Elevators/HVAC Controllers and sensors, etc. to an Ethernet network.
Long distance headend switch to remote-end device cabling can be achieved to over 1km
(1,000m, 3,280 ft.). Pace4KL can be used in a typical star configuration. Up to four (4) Pace4KL can be daisy-chained to further expand the network.

In addition to new SPE (UTP) Ethernet network installations, upgrading of legacy networks, i.e.
LONworks, RS485, 4-20mA Control Loops, etc. can be achieved by using the existing two wire cabling, thus saving rip-out & reinstallation costs.

Operationally, Pace4KL is connected to a switch at the headend and is powered by the
12/24VDC power supply. Pace4KL passes network data from the switch via UTP up to 1km
(1,000m, 3,280 ft.) to the remote T1L devices.

Input
12/24V power supply, 3.5W.

SPE (Single Pair Ethernet) over UTP or 16/2 AWG or Higher link
Four (4) 10Base-T1L ports.
Wire type: Twisted pair (2-wire, UTP, 16/2 AWG or higher).
Speed: 10Mbps
Distance: 1km (1,000m, 3,280 ft.).

Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e or higher.
Distance: up to 100m from midspan.
Speed: 10/100BaseT, half/full duplex, auto negotiation.

LED Indicators
Yellow and Green LED (by RJ45 jack):
IP Link status, 10/100Base-T/active.
Link LED for each T1L port.

Electrical
Temperature:
Operating: – 40º C to 75º C (– 40º F to 167º F).
Storage: – 40º C to 75º C (– 40º F to 167º F).

Relative Humidity: 85% +/- 5%.
Operating Altitude: – 304.8 to 2,000m.
