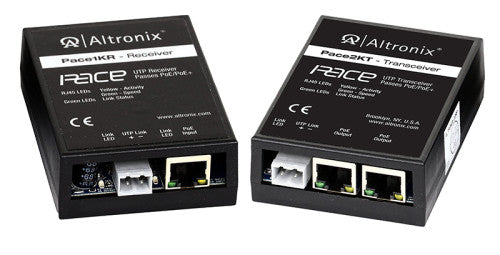

Altronix PACE2KRT 1KM 1PR ETHERNET/DUAL POE/UTP

Altronix PACE2KRT 1KM 1PR ETHERNET/DUAL POE/UTP Altronix Pace2KRT is a long-range Ethernet adapter kit solution that transmits data and power via twisted pair (2-wire, UTP or shielded) in a PoE(+) compliant format. In addition to new SPE (UTP) Ethernet network installations for Surveillance cameras/Security/Industrial/BMS/HVAC/Intercoms and Elevator Controllers, applications include upgrading of legacy networks, i.e. LONworks, RS485, 4-20ma Control Loops, etc. by using the existing two wire cabling, thus saving rip-out & reinstallation costs. Operationally, the Pace1KR is connected to a POE midspan/endspan switch at the headend and passes network data and power to the Pace2KT from the switch via UTP up to 1km (1,000m, 3,280 ft.) to two (2) remote 10/100 POE devices, such a as a camera/s or controllers. Data is only supplied to the remote device for non-enabled devices. Cable distances and multi-node device drop-offs are facilitated by using one of the two Pace2KT ports for the continued network link in a daisy chain manner. Input Pace1KR: Powered by midspan or endspan PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (25W) Pace2KT: Powered by Pace1KR UTP Connection Wire type: Twisted pair (2-wire, UTP or shielded) Distance: 1km (1,000m, 3,280 ft.), 16/2 AWG or higher @ 10Mbps Ethernet Connection Connectivity: RJ45, auto-crossover. Wire type: 4-pair, CAT5e or higher. Distance: up to 100m from midspan to Pace1KR receiver (headend), 100m from PaceKT transceiver to device Speed: 10/100BaseT, half/full duplex, auto negotiation. PoE: IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (25W) delivered to device by Pace1KR Power provided by Pace1KR to Pace2KT by PoE protocol. Indicators (LED) Green LED (left): PoE (link) Green LED (right): Data transmission (link) Yellow and Green LED (by RJ45 jack): IP Link status, 10/100Base-T/active. Electrical Temperature: Operating: – 40º C to 75º C (– 40º F to 167º F). Storage: – 40º C to 75º C (– 40º F to 167º F). Relative Humidity: 85% +/- 5%. Operating Altitude: – 304.8 to 2,000m.
