Altronix PACE1PTM 1CH IP EXTENDER TRANS 100MBPS

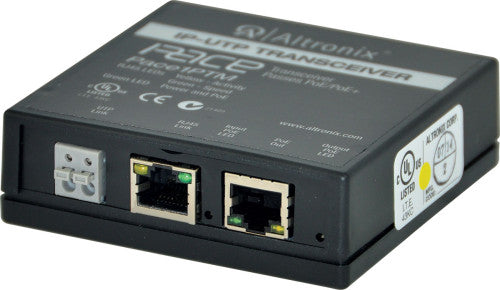

The Pace1PTM is a long range Ethernet transceiver designed for use with Pace1PRM, Pace4PRM, Pace8PRM and Pace16PRM receivers. They transmit data at 100Mbps full duplex and power via a single twisted pair (UTP) (when paired with Pace1PRM) or Cat5e or higher cable in a PoE(+) compliant format. The Pace1PTM will not deliver power to non compliant devices, thus avoiding damage to improperly connected non-PoE cameras/devices. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over single twisted pair (UTP) (when paired with Pace1PRM) or structured cable.
Input
PoE (15W) IEEE 802.3af compliant or PoE+ (30W) IEEE 802.3at compliant from Pace1PRM, Pace4PRM, Pace8PRM, or Pace16PRM.
Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e or a single twisted pair UTP.
Speed: 10/100BaseT, half/full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1PTM.
Throughput is rated to pass 100Mbps of data.
UTP (single twisted pair) from Receiver to Pace1PTM
Distance: up to 152m @ 100Mbps.
CAT5e or Higher from Receiver to Pace1PTM
Distance: up to 500m @ 100Mbps.
LED Indicators
Green - PoE ON (by respective RJ45 jack).
Yellow and Green LED IP Link status, 10/100Base-T/active.
Environmental
Operating Temperature:
For 15W: - 40° C to 75° C ( - 40° F to 167° F).
For 25W: - 40° C to 70° C ( - 40° F to 158° F).
For 30W: - 40° C to 60° C ( - 40° F to 140° F).
Storage Temperature: - 40° F to 167° F ( - 40° C to 75° C).
Relative humidity: 20 to 85%, non-condensing.
Operating Altitude
-304.8 to 2000m.
Functions
Auto detection and protection of legacy non-PoE cameras/devices.
