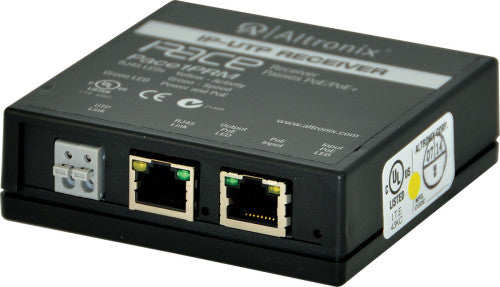

Altronix PACE1PRM 1CH IP EXTENDER RCVR 100MBPS

Altronix PACE1PRM 1CH IP EXTENDER RCVR 100MBPS

Pace1PRM is a long range Ethernet receiver which transmits data at 100Mbps full duplex and power via a single twisted pair (UTP) or CAT5e or higher cable in a PoE(+) compliant format. Pace1PRM receiver is powered via a PoE midspan, such as the Altronix Netway series, or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM or Pace1ST transceiver which, in turn, passes this power to an enabled IP camera/device. These plug and play units facilitate cost-effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over single twisted pair (UTP) or structured cable.

Input
Powered by midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).

Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e or a single twisted pair UTP.
Speed: 10/100BaseT, half/full duplex, auto negotiation.
PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1PTM. Power provided by Pace1PRM to Pace1PTM by PoE protocol.
Throughput is rated to pass 100Mbps of data.

UTP (Single Twisted Pair UTP)
Distance: up to 152m @ 100Mbps.

CAT5e or Higher
Distance: up to 500m @ 100Mbps.

LED Indicators
Green - PoE ON (by respective RJ45 jack).
RJ45 jack: Yellow and Green LED IP Link status, 10/100Base-T/active.

Environmental
Operating Temperature: - 4° F to 120.2° F ( - 20° C to +49° C).
Storage Temperature: - 22° to 158° F ( - 30° to +70° C).
Relative humidity: 20 to 85%, non-condensing.
Operating Altitude: - 304.8 to 2000m.

Functions
Auto detection and protection of legacy non-PoE cameras/devices.
