Altronix PACE1KT 1KM SIN PAIR ETH&POE/UTP/TRANS

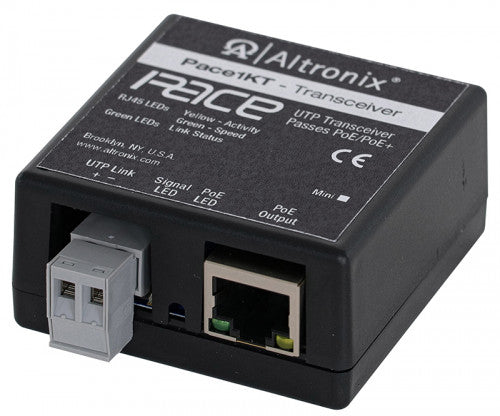

Altronix PACE1KT 1KM SIN PAIR ETH&POE/UTP/TRANS Altronix Pace1KT is a long-range Ethernet adapter/transceiver that transmits data and power from Pace1KR or Pace4KR(Q) receivers via twisted pair (2-wire, UTP or shielded) in a PoE(+) compliant format. In addition to new SPE (UTP) Ethernet network installations for Surveillance-cameras/Security/Industrial/BMS/HVAC & Elevator Controllers, applications include upgrading of legacy networks, i.e. LONworks, RS485, 4-20ma Control Loops, etc. by using the existing two wire cabling, thus saving rip-out & reinstallation costs.

Operationally, Pace1KR or Pace4KR(Q) is connected to a PoE midspan/endspan switch at the headend and passes network data and power to the Pace1KT from the switch via UTP up to 1km (1,000m, 3,280 ft.) to a remote 10/100 PoE device, such as a camera. For non-PoE remote devices, data only is transmitted. Input Powered by Pace KR receiver PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W). UTP Connection Wire type: Twisted pair (2-wire, UTP or shielded) Distance: 1km (1,000m, 3,280 ft.), 16/2 AWG or higher @ 10Mbps Ethernet Connection Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5e or higher. Distance: up to 100m from midspan to Pace1KR receiver (headend), 100m from PaceKT transceiver to device Speed: 10/100BaseT, half/full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (25W) delivered to device by Pace KR receiver. Power provided by Pace KR receiver to Pace1KT by PoE protocol.* LED Indicators Green LED (left): PoE (link) Green LED (right): Data transmission (link) Yellow and Green LED (by RJ45 jack): IP Link status, 10/100Base-T/active Functions Auto detection and protection of legacy non-PoE cameras/devices. Temperature Operating: – 40ºC to 75ºC (– 40º to 167ºF) Storage: – 40ºC to 75ºC (– 40º to 167ºF) Relative Humidity 85% +/– 5% Operating Altitude -304.8 to 2000m.
