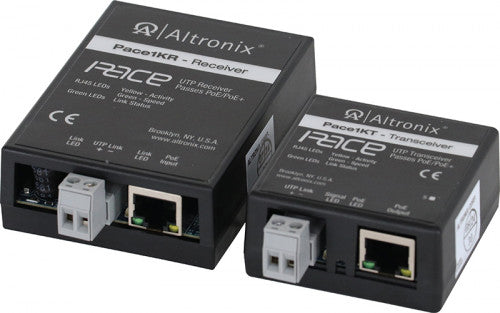

Altronix PACE1KRT 1KM SING PAIR ETHERNET&POE/UTP

Altronix PACE1KRT 1KM SING PAIR ETHERNET&POE/UTP Altronix Pace1KRT is a long-range Ethernet adapter kit solution that transmits data and power via twisted pair (2-wire, UTP or shielded) in a PoE(+) compliant format. In addition to new SPE (UTP) Ethernet network installations for Surveillance cameras/Security/Industrial/BMS/HVAC/Intercoms & Elevator Controllers, applications include upgrading of legacy networks, i.e. LONworks, RS485, 4-20ma Control Loops, etc. by using the existing two wire cabling, thus saving rip-out & reinstallation costs. Operationally, the Pace1KR is connected to a POE midspan/endspan switch at the headend and passes network data and power to the Pace1KT from the switch via UTP up to 1km (1,000m, 3,280 ft.) to a remote 10 POE device, such as a camera. For non-PoE remote devices, data only is transmitted. Input Pace1KR: Powered by midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (25W). Pace1KT: Powered by Pace1KR. UTP Connection Wire type: Twisted pair (2-wire, UTP or shielded) Distance: 1km (1,000m, 3,280 ft.), 16/2 AWG or higher @ 10Mbps Ethernet Connection Connectivity: RJ45, auto-crossover. Wire type: 4-pair, CAT5e or higher. Distance: up to 100m from midspan to Pace1KR receiver (headend), 100m from Pace1KT transceiver to device Speed: 10BaseT, half/full duplex, auto negotiation. PoE: IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (25W) delivered to device by Pace1KR Power provided by Pace1KR to Pace1KT by PoE protocol. Indicators (LED) Green LED (left): PoE (link) Green LED (right): Data transmission (link) Yellow and Green LED (by RJ45 jack): IP Link status, 10Base-T/active. Environmental Temperature Operating: – 40ºC to 75ºC (– 40º to 167ºF). Storage: – 40ºC to 75ºC (– 40º to 167ºF). Relative Humidity Relative Humidity: 85% +/- 5%. Operating Altitude: – 304.8 to 2,000m.
