Altronix PACE1KRL12S 10BASE-T1L/ET MD 12V PW SP KIT

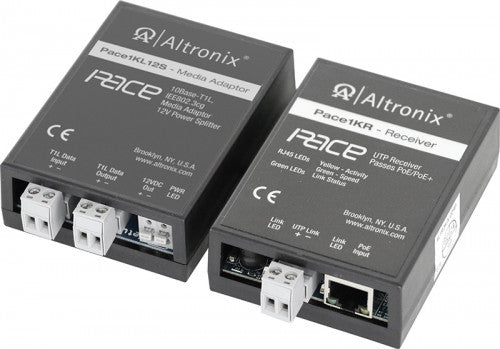

Altronix PACE1KRL12S 10BASE-T1L/ET MD 12V PW SP KIT Altronix Pace1KRL12S is SPE (Single Pair Ethernet) media adaptors/splitters kits that enable connecting 10Base-T1L, IEE802.3cg compliant devices such as Security/Industrial/BMS/Elevators/HVAC Controllers and sensors, etc. to an Ethernet network. The kit provides T1L data & 12V power separately to power the remote device, thus eliminating the need for local power. Long distance headend to remote-end device cabling can be achieved to over 1km (1,000m, 3,280 ft.). In addition to new SPE (UTP) Ethernet network installations, upgrading of legacy networks, i.e. LONworks, RS485, 4-20ma Control Loops, etc. can be achieved by using the existing two wire cabling, thus saving rip-out & reinstallation costs. Operationally, the Pace1KR passes network data & POE power from the POE switch via UTP up to 1km (1,000m, 3,280 ft.) to the Pace1KL12S, which then passes the T1L data to the device and separately provides 12V power to the device. Input Pace1KR: Powered by midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (25W). Pace1KL12S: Powered by Pace1KR. SPE (Single Pair Ethernet) over UTP or 16/2 AWG or Higher Link Wire type: Twisted pair (2-wire, UTP or shielded) Distance: > 1km (1,000m, 3,280 ft.) @ 10Mbps Power Output Pace1KL12S: 20W Available power depends on distance & wire gauge. Indicators (LED) Pace1KR: Link LED: Green, PoE Active (left of UTP link) Link LED: Green, Active Indicate Data transmission Yellow and Green LED Next to Ethernet link: IP Link status, 10/100Base-T/active Pace1KL12S: Red LED: Output power ON Environmental Temperature Operating: – 40ºC to 75ºC (– 40º to 167ºF). Storage: – 40ºC to 75ºC (– 40º to 167ºF). Relative Humidity Relative Humidity: 85% +/- 5%. Operating Altitude: – 304.8 to 2,000m.
