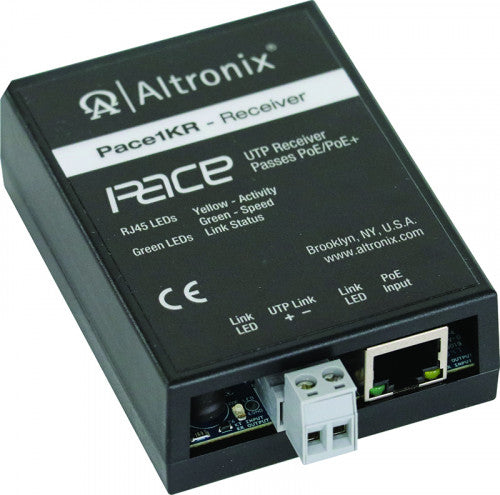

Altronix PACE1KR 1KM SING PAIR ETH&POE/UTP/REC

Altronix PACE1KR 1KM SING PAIR ETH&POE/UTP/REC Altronix Pace1KR is a long-range Ethernet adapter that transmits data and power via twisted pair (2-wire, UTP or shielded) in a PoE(+) compliant format. In addition to new SPE (UTP) Ethernet network installations for Surveillance-cameras/Security/Industrial/BMS/HVAC & Elevator Controllers, applications include upgrading of legacy networks, i.e. LONworks, RS485, 4-20ma Control Loops, etc. by using the existing two wire cabling, thus saving rip-out & reinstallation costs. Operationally, the Pace1KR is connected to a PoE midspan/endspan switch at the headend and passes network data and power to the Pace transceiver from the switch via UTP up to 1km (1,000m, 3,280 ft.) to a remote 10 PoE device, such as a camera. For non-PoE remote devices, data only is transmitted. Input Powered by PoE midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (25W). UTP Connection Wire type: Twisted pair (2-wire, UTP or shielded) Speed: 10Mbps Distance: 1km (1,000m, 3,280 ft.), 16/2 AWG or higher @ 10Mbps Ethernet Connection Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5e or higher. Distance: up to 100m from midspan to Pace1KR receiver (headend), 100m from Pace transceiver to device. Speed: 10BaseT, half/full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (25W) delivered to device by Pace1KR. Power provided by Pace1KR to Pace transceiver by PoE protocol.* Indicators (LED) Green LED (left): PoE (link) Green LED (right): Data transmission (link) Yellow and Green LED (by RJ45 jack): IP Link status, 10Base-T/active. Functions Auto detection and protection of legacy non-PoE cameras/devices. Electrical Temperature: Operating: – 40º C to 75º C (– 40º F to 167º F). Storage: – 40º C to 75º C (– 40º F to 167º F). Relative Humidity: 85% +/- 5%. Operating Altitude: – 304.8 to 2,000m.
