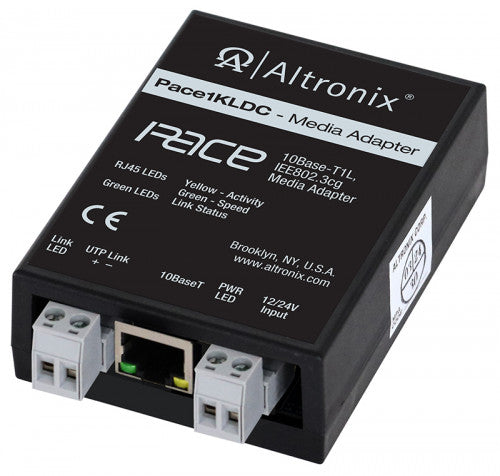

Altronix Pace1KLDC is a SPE (Single Pair Ethernet) media converter/adapter that enables
connecting 10Base-T1L, IEE802.3cg compliant devices such as Security/Industrial/BMS/
Elevators/HVAC Controllers and sensors, etc. to an Ethernet network. Long distance headend to remote-end device cabling can be achieved to over 1km (1,000m, 3,280 ft.).

In addition to new SPE (UTP) Ethernet network installations, upgrading of legacy networks,
i.e. LONworks, RS485, 4-20mA Control Loops, etc. can be achieved by using the existing
two wire cabling, thus saving rip-out & reinstallation costs.

Operationally, the Pace1KLDC is powered via 12/24VDC or 12/24VAC at the headend,
ethernet connection to the switch transmitting network data (10BaseT), and single pair
Ethernet connection up to 1km (1,000m, 3,280 ft.) to the remote T1L device.

Input
Powered via 12/24VDC or 12V/24VAC.

SPE (Single Pair Ethernet) over UTP or 16/2 AWG or Higher link
Wire type: Twisted pair (2-wire, UTP).
Distance: 1km (1,000m, 3,280 ft.) @ 10Mbps

Ethernet/Data Port
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e or higher.
Distance: up to 100m.
Speed: 10 BaseT, half/full duplex, auto negotiation.

LED Indicators
Green LED:
Data transmission (link) over SPE

Red LED:
Power (12/24VDC)

Yellow and Green LED (RJ45 jack):
IP Link status, 10/100Base-T/active.

Electrical
Temperature:
Operating: – 40º C to 75º C (– 40º F to 167º F).
Storage: – 40º C to 75º C (– 40º F to 167º F).

Relative Humidity: 85% +/- 5%.
Operating Altitude: – 304.8 to 2,000m.
