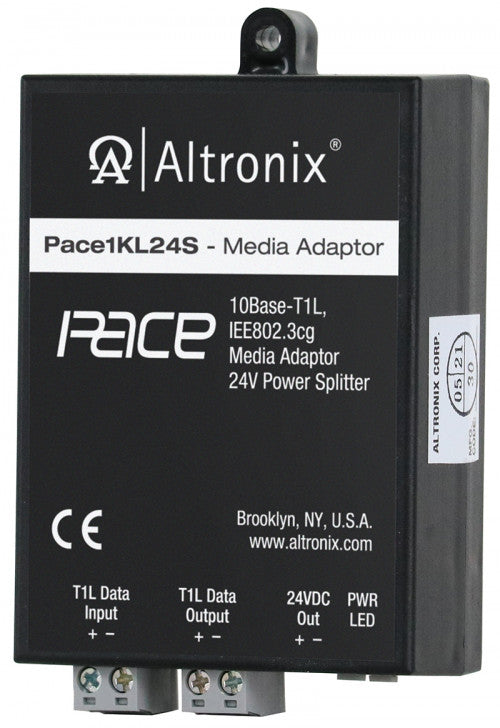

Altronix Pace1KL24S is a SPE (Single Pair Ethernet) media adaptor/splitter that enables connecting 10Base-T1L, IEE802.3cg compliant devices such as Security/Industrial/BMS/ Elevators/HVAC Controllers and sensors, etc. to an Ethernet network. When used in conjunction with Pace1KR, the unit provides T1L data & 24V power separately to power the remote device, thus eliminating the need for local power. Long distance headend to remote-end device cabling can be achieved to over 1km (1,000m, 3,280 ft.).

In addition to new SPE (UTP) Ethernet network installations, upgrading of legacy networks, i.e. LONworks, RS485, 4-20ma Control Loops, etc. can be achieved by using the existing two wire cabling, thus saving rip-out & reinstallation costs.

Operationally, the Pace1KR or Pace4KR(Q) receiver passes network data & POE power from the POE switch via UTP up to 1km (1,000m, 3,280 ft.) to the Pace1KL24S, which then passes the T1L data to the device and separately provides 24V to the device.

Input
Powered by Pace1KR or Pace4KR(Q) receiver

SPE (Single Pair Ethernet) over UTP or 16/2 AWG or Higher Link
Wire type: Twisted pair (2-wire, UTP or shielded)
Distance: > 1km (1,000m, 3,280 ft.) @ 10Mbps

Power Output
20W
Available power depends on distance & wire gauge.
See Altronix online voltage drop calculator & allow for 10V cable drop.

Indicators (LED)
Red LED: Output power ON

Environmental
Temperature:
Operating: - 40º C to 75º C ( - 40º to 167º F).
Storage: - 40º C to 75º C ( - 40º to 167º F).

Relative Humidity:
Relative Humidity: 85% +/- 5%.

Operating Altitude:
-304.8 to 2,000m.
