Altronix PACE1KL 10BASE-T1L/802.3CG ETH MED AD

Altronix PACE1KL 10BASE-T1L/802.3CG ETH MED AD

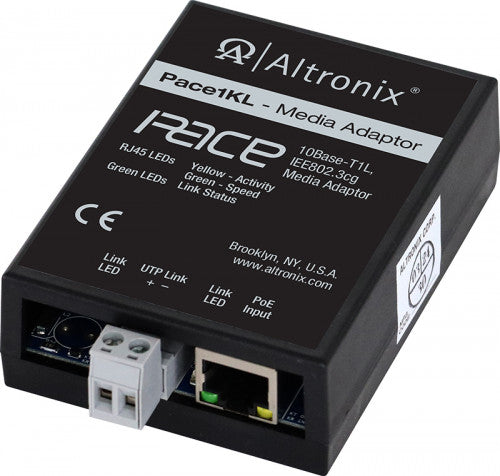

Altronix Pace1KL is a SPE (Single Pair Ethernet) media converter/adaptor that enables
connecting 10Base-T1L, IEE802.3cg compliant devices such as Security/Industrial/BMS/
Elevators/HVAC Controllers and sensors, etc. to an Ethernet network. Long distance headend to remote-end device cabling can be achieved to over 1km (1,000m, 3,280 ft.).

In addition to new SPE (UTP) Ethernet network installations, upgrading of legacy networks,
i.e. LONworks, RS485, 4-20mA Control Loops, etc. can be achieved by using the existing
two wire cabling, thus saving rip-out & reinstallation costs.

Operationally, the Pace1KL is connected to a POE midspan/endspan switch at the headend
and passes network data from the switch via UTP up to 1km (1,000m, 3,280 ft.) to the
remote T1L device.

Input
Powered by PoE midspan or endspan.

SPE (Single Pair Ethernet) over UTP or 16/2 AWG or Higher link
Wire type: Twisted pair (2-wire, UTP).
Distance: 1km (1,000m, 3,280 ft.) @ 10Mbps

Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e or higher.
Distance: up to 100m from midspan.
Speed: 10/100BaseT, half/full duplex, auto negotiation.

LED Indicators
Green LED (right):
Data transmission (link) over SPE

Yellow and Green LED (RJ45 jack):
IP Link status, 10/100Base-T/active.

Electrical
Temperature:
Operating: – 40º C to 75º C (– 40º F to 167º F).
Storage: – 40º C to 75º C (– 40º F to 167º F).

Relative Humidity: 85% +/- 5%.
Operating Altitude: – 304.8 to 2,000m.
