Altronix P1MM MULTIMODE SFP 1.25GBPS

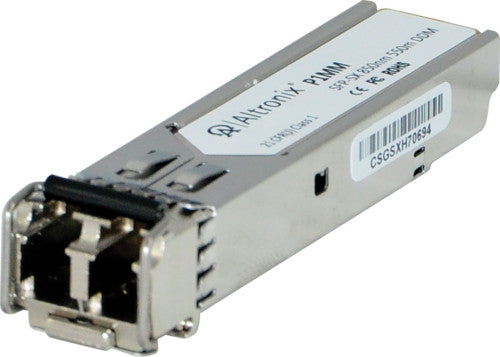

Altronix P1MM are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix Spectrum fiber optic equipment for 1G transmission rates. The P1MM is to be used with Multi-Mode Fiber for distances up to 550m. It is recommended to pair (two per fiber link) remote and headend with same SFP module.
Key Features
IEEE 802.3a compliant.
Spans distances up to 550m (1804 ft.)
Conforms to (SFP) Small Form-Factor Pluggable Multi-Source Agreement (MSA).
Standards
Class 1 FDA and IEC60825-1 Laser Safety Compliant.
Compliant with MSA SFP Specification.
Connector Type
LC Duplex.
Data Rate
Up to 1.25Gbps.
Wave
850nm VCESL Laser Transmitter.
TX power (dBm)
-18 ~ 0
RX Sensitivity (dBm)
-8 ~ -4
Distance
550m with 50/125 micron MMF.
Temperature
Operating Temperature: -40ºC to 75ºC (-40ºF to 167ºF).
Storage Temperature: - 40ºC to 85ºC (-40º to 185ºF).
Relative Humidity 85% +/- 5%.
