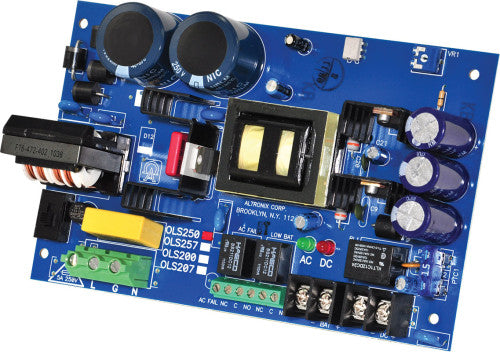

Altronix OLS250 24VDC 10A PWR SPLY BOARD

Altronix OLS250 24VDC 10A PWR SPLY BOARD Altronix OLS250 power supply/charger converts a 115VAC, 50/60Hz input into a 24VDC output. This unit has a wide range of applications for access control and security system accessories that require additional power. Input 115VAC, 50/60Hz, 1.9A. Working range for 24V/10A output: 100-132VAC Working range for 24V/8A output: 95-132VAC Output 24VDC output. 10A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Maximum charge current 0.7A. Automatic switch over to stand-by battery when AC fails. Battery leads included. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Features Power ON/OFF switch. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 123 BTU/Hr. System AC input VA requirement: 218.5VA.
