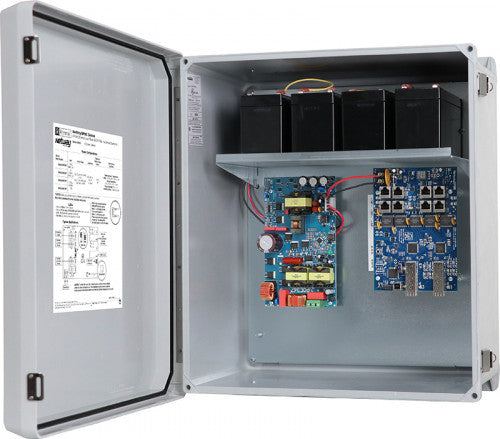

Altronix NETWAYSP8C7W5 8PT FB MD/360W/EBC48/277V

Altronix NETWAYSP8C7W5 8PT FB MD/360W/EBC48/277V Altronix NetWaySP8C7W5 supports up to 60W per port (360W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and eight (8) PoE+ (30W) or two (2) Hi-PoE (60W) Ethernet ports. NetWaySP8C7W5 accommodates single/multi-mode fiber cable to deliver data from NetWay Spectrum head-end media converters/injectors. NetWaySP8C7W5 has an integrated rapid battery charger for extended battery run times. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere. Input 230-277VAC, 50/60Hz, 1.75A Input Fuse: 5A/250V Power Output Maximum Power: Eight (8) PoE+ (30W) ports or two (2) Hi-PoE (60W) ports, 360W total power IEEE 802.3af (15W), IEEE 802.3at (30W) compliant 360W total power Integral surge protection SFP Ports: Two (2) Gigabit SFP ports Ethernet Ports Six (6) 100 Mbps full duplex only (ports 1, 2, 3, 5, 7 and 8) and two (2) 10/100/1000 Mbps ports Connectivity: RJ45, auto-crossover Wire type: 4-pair CAT5e or higher structured cable Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation Battery Charging Type: 48VDC charging circuit charges sealed lead acid or gel type batteries Selectable 2A or 4A charging circuit Able to recharge 32AH or larger batteries in under 8 hours Low battery and battery presence supervision AC Fail supervision Failover: Upon AC loss, instantaneous (Batteries are sold separately) (Vent2 Ventilation Kit is included) Indicators (LED) Individual PoE On LEDs for each port Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port ALOS LED indicates fiber connection for SFP port Heartbeat LED indicates proper operation of the unit VLAN: Multiple management VLAN assignment 802.1Q Tagged VLAN Up to 10 VLAN groups. ID Range 2-4095 LINQ Technology: Remote network management allows for camera/device reset and diagnostic monitoring Provides local and/or remote access to critical information via LAN/WAN Email and Windows Dashboard Alert notifications report real-time events Event log tracks history Temperature Operating (360W): – 30ºC to 65ºC (– 22ºF to 149ºF) Operating (240W): – 30ºC to 70ºC (– 22ºF to 158ºF) Storage: – 30ºC to 85ºC (– 22ºF to 185ºF) Relative Humidity: 85% +/– 5% BTU/Hr. (approx.): 183 BTU/Hr. Operating Altitude: – 304.8 to 2,000m.
