Altronix NETWAYSP4B 4-PORT FIBER MEDIA CONV, 2SFP

Altronix NETWAYSP4B 4-PORT FIBER MEDIA CONV, 2SFP

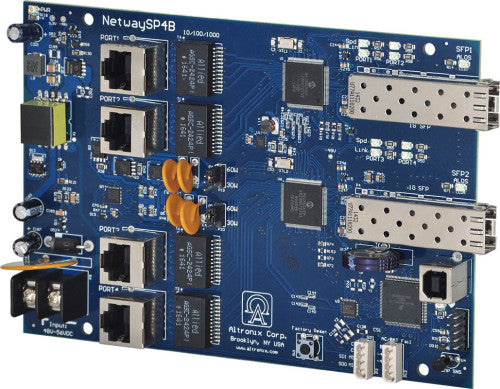

Altronix NetWaySP4B PoE+ Switch board provides two (2) 1Gb SFP (Fiber) ports and four (4) PoE+ (30W) ports. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control, and report power and diagnostics from anywhere.

Input
48V-56V (UL Listed ITE power supply)

Power Output
Four (4) PoE/PoE+ (up to 30W) ports.
IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
120W total power.
Integral surge protection.

Fiber Ports
Two (2) Gigabit SFP ports.

Ethernet Ports
Four (4) 10/100/1000 Mbps ports.
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5 or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.

Indicators (LED)
Individual PoE On LEDs for each port.
Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.

VLAN
Multiple management VLAN assignment.
802.1Q Tagged VLAN.
Up to 10 VLAN groups. ID Range 2-4095.

LINQ Technology
Remote network management allows for camera/device reset and monitoring.
Provides local and/or remote access to critical information via LAN/WAN.
Email and Windows Dashboard Alert notifications report real-time diagnostics.
Event log tracks history.

Temperature
Operating:
60W: - 40° C to 75° C ( - 40° F to 167° F).
75W: - 40° C to 70° C ( - 40° F to 158° F).
100W: - 40° C to 55° C ( - 40° F to 131° F).
120W: - 40° C to 45° C ( - 40° F to 113° F).

Storage: - 40° C to 85° C ( - 40° F to 185° F).
Relative Humidity: 85% +/- 5%

Operating Altitude
- 304.8 to 2,000m.
