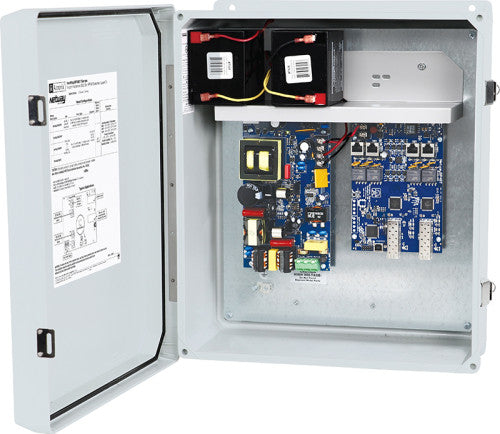

Altronix NETWAYSP41BTWPX 4PT CON/NO LINQ/2SFP/LGNEMA4

Altronix NETWAYSP41BTWPX 4PT CON/NO LINQ/2SFP/LGNEMA4 Altronix NetWaySP41BTWPX supports up to 90W per port (240W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP4BTWPX accommodates single/multi-mode fiber cable to deliver data from NetWay Spectrum head-end media converters/injectors. Input Voltage: 115VAC, 60Hz, 1.8A or 230VAC, 50/60Hz, 1A. Fusing: 5A/250V. Power Output Maximum Power: Four (4) PoE ports rated at 90W each, 240W total power. IEEE 802.3af (15W), IEEE 802.3at (30W), IEE 802.3bt (90W) compliant. Integral surge protection. SFP Ports Two (2) Gigabit SFP port. Ethernet Ports Four (4) 10/100/1000 Mbps ports. Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5e or higher structured cable. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation. Battery Charging Type: 24VDC charging circuit charges LiFePO₄ (Lithium Iron Phosphate) or sealed lead acid or gel type batteries (require separate ventilated enclosure). Failover: Upon AC loss, instantaneous (Batteries are sold separately). Indicators (LED) Individual PoE On LEDs for each port. Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port. ALOS LED indicates fiber connection for SFP port. Heartbeat LED indicates proper operation of the unit. Environmental Temperature: Operating (240W): - 40° C to 55° C ( - 40° F to 131° F). Operating (180W): - 40° C to 65° C ( - 40° F to 149° F). Operating (150W): - 40° C to 75° C ( - 40° F to 167° F). Storage: - 40° C to 85° C ( - 40° F to 185° F). Relative Humidity: 85% +/- 5% BTU/Hr. (approx.): 122 BTU/Hr. Operating Altitude - 304.8 to 2,000m. Mounting hardware is included
