Altronix NETWAYSP2BTWPN 2PT 802.3BT CONV/INJECTOR/OUT

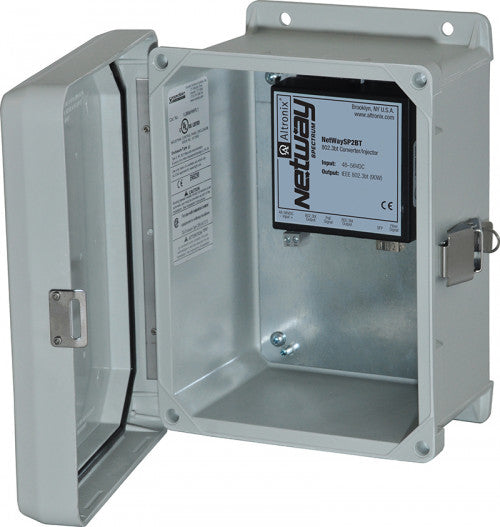

Altronix NetWaySP2BTWPN Outdoor 802.3bt media converter/injector provides two (2) 802.3bt (4PPoE) ports up to 180W total and accommodates Fiber (1000Base-X/SX/LX) or
structured cable to transmit data. Unit can be deployed with structured cable, conventional
single/multimode fiber or composite cable (fiber + copper combined).
Cameras/edge devices may be located up to 100m from the unit.
Input
48-56VDC @ 3.5A (180W).
Fiber Port
One (1) 1Gb SFP port.
PoE/Data Ports
Two (2) ports rated up to 90W max. each
IEEE 802.3af, 802.3at and 802.3bt compliant
Connectivity: RJ45, auto-crossover
Wire type: 4-pair CAT5e
Distance: up to 100m
Speed: 10/100/1000 Mbps
Indicators (LED)
Yellow/Green RJ45 LEDs:
Yellow: 10/100
Green: 10/100/1000
Green PoE LED:
Indicate PoE present.
Green SFP (Fiber) LED:
Indicates SFP connection.
Features
Auto detection and protection of legacy non-PoE cameras/devices.
Temperature
Operating Temperature:
60W: - 40ºC to 75ºC (- 40ºF to 167ºF).
90W: - 40ºC to 60ºC (- 40ºF to 140ºF).
180W: - 30ºC to 60ºC (- 22ºF to 140ºF).
Storage Temperature: - 40ºC to 85ºC ( - 40º to 185ºF).
Relative Humidity: 85% +/- 5%.
Operating Altitude
- 304.8 to 2,000m.
