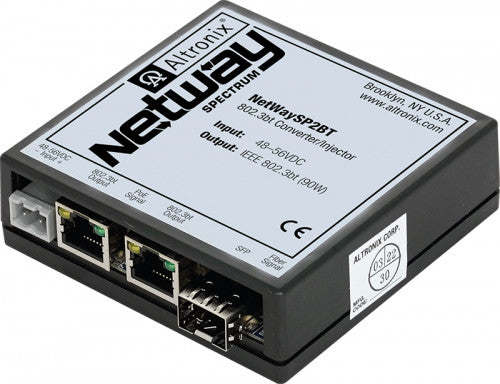

Altronix NETWAYSP2BT 2PT 802.3BT CONVERTER/INJECTOR
Altronix NetWaySP2BT 802.3bt media converter/injector provides two (2) 802.3bt (4PPoE)
ports up to 180W total and accommodates Fiber (1000Base-X/SX/LX) or structured cable
to transmit data. Unit can be deployed with structured cable, conventional single/multimode
fiber or composite cable (fiber + copper combined).
Cameras/edge devices may be located up to 100m from the unit.
Input
48-56VDC @ 3.5A (180W).
Fiber Port
One (1) 1Gb SFP port.
PoE/Data Ports
Two (2) ports rated up to 90W max. each.
IEEE 802.3af, 802.3at and 802.3bt compliant
Connectivity: RJ45, auto-crossover
Wire type: 4-pair CAT5e
Distance: up to 100m
Speed: 10/100/1000 Mbps
Indicators (LED)
Yellow/Green LEDs:
IP Link status, 10/100/1000 Base-T/active.
Green PoE LED:
PoE present.
Green SFP (Fiber) LED:
SFP connection.
Features
Auto detection and protection of legacy non-PoE cameras/devices.
Compact insulated housing.
Temperature
Operating (180W): – 40ºC to 75ºC (– 40ºF to 167ºF)
Storage: – 40ºC to 75ºC (– 40ºF to 167ºF)
Relative Humidity: 85% +/– 5%
Operating Altitude
- 304.8 to 2,000m.
