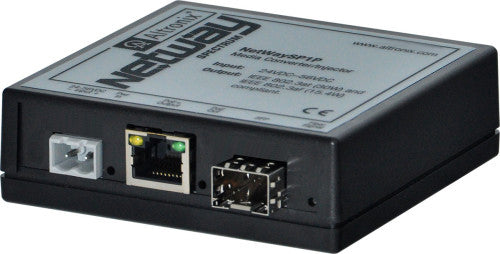

Altronix NETWAYSP1P ETHER OVER FIBER MED CONV/INJ

Altronix NETWAYSP1P ETHER OVER FIBER MED CONV/INJ

Altronix NetWaySP1P media converter/injector converts Fiber (1000Base-X/SX/LX)
to a Gigabit (1000Mbps) Ethernet and provides PoE/PoE+ power to a connected device.

Input
24VDC @ 1.5A, 56VDC @ 0.75A (30W / PoE+).
24VDC @ 1.0A, 56VDC @ 0.5A (15W / PoE).

Output
Unit provides PoE / PoE+, up to 30W max.
IEEE 802.3af and IEEE 802.3at compliant.
Short circuit protection.

Fiber Port
One (1) 1Gb SFP port.
Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).

Ethernet
IEEE 802.3at (30W) compliant.
Wire type: 4-pair CAT5e and higher.
Connectivity: RJ45, auto-crossover.
Speed: : Gigabit (1000Mbps).
Distance: up to 100m.

Indicators (LED)
Yellow/Green LEDs:
IP Link status, 10/100/1000 Base-T/active.

Green Pwr In LED:
Indicates unit is powered.

Green PoE LED:
Indicate PoE present.

Green SFP (Fiber) LED:
Indicates SFP connection.

Features
Auto detection and protection of legacy non-PoE cameras/devices.
Compact insulated housing.

Temperature
Operating Temperature:
24VDC @ 15W: -40ºC to 65ºC ( -40ºF to 149ºF).
24VDC @ 20W: -40ºC to 60ºC ( -40ºF to 140ºF).
24VDC @ 25W: -40ºC to 55ºC ( -40ºF to 131ºF).
24VDC @ 30W: -40ºC to 45ºC ( -40ºF to 113ºF).
56VDC @ 25W: -40ºC to 75ºC ( -40ºF to 167ºF).
56VDC @ 30W: -40ºC to 70ºC ( -40ºF to 158ºF).

Storage Temperature: - 40ºC to 75ºC ( - 40º to 167ºF).
Relative Humidity: 85% +/- 5%.

Operating Altitude
- 304.8 to 2,000m.
