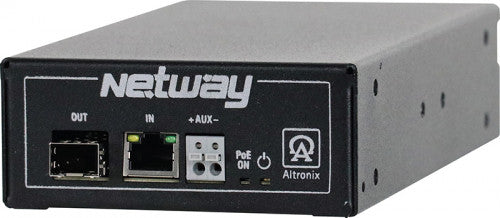

Altronix NETWAYSP1H 1PT FIB MED CONV & 90W PS 1U

Altronix NETWAYSP1H 1PT FIB MED CONV & 90W PS 1U Altronix NetwaySP1H Media Converter with Integral Power provides one (1) 1Gb SFP port and one (1) port for up to 90W to be transmitted over single/multi-mode fiber or composite cable (powered) cable (fiber + copper combined) to NetWay Spectrum PoE Hardened Switches and remote media converters. NetWaySP1H operates at 115VAC or 230VAC input. Input 115VAC, 60Hz, 1.2A or 230VAC, 50/60Hz, 0.75A (auto-ranging) Power Maximum Power One (1) 56VDC non power-limited output up to 90W max. full power Short circuit protection SFP Port One (1) Gigabit SFP/Fiber port Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included) Ethernet/Data One (1) port to switch Wire type: 4-pair CAT5e and higher Connectivity: RJ45, auto-crossover Speed: Gigabit (1,000Mbps) Distance: up to 100m. LED Indicators Red LED: PoE ON Red LED: Power ON Yellow and Green LED (by RJ45 jack): IP Link status, 10/100Base-T/active Temperature Operating (90W): - 40ºC to 50ºC (- 40ºF to 122ºF). Storage: - 40ºC to 85ºC (- 40ºF to 185ºF). Relative Humidity: 85% +/- 5%. Operating Altitude -304.8 to 609.6m.
