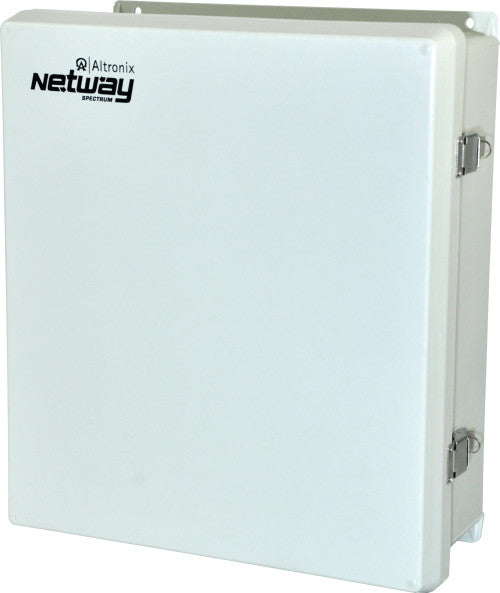

Altronix NETWAYSP1BTWPX 802.3BT (4PPOE) INJ/LG OUTDOOR

Altronix NETWAYSP1BTWPX 802.3BT (4PPOE) INJ/LG OUTDOOR Altronix NetWaySP1BTWPX Outdoor 802.3bt media converter/injector provides a single 802.3bt (4PPoE) port up to 90W and accommodates Fiber (1000Base-X/SX/LX) or structured cable to transmit data. Units can be deployed with structured cable, conventional single/multimode fiber or composite cable (fiber + copper combined). Cameras/edge devices may be located up to 100m from the unit. NEMA 4/4X IP66-11 enclosure accommodates stand-by batteries Input 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A. Input Fuse: 5A/250V. Fiber Port One (1) 1Gb SFP port. PoE Port Single port rated up to 90W max. IEEE 802.3af, 802.3at and 802.3bt compliant Data Port Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5e. Distance: up to 100m. Speed: 10/100/1000 Mbps. Battery Charging Capacity: 4AH/12VDC (4 within enclosure) Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Indicators (LED) Yellow/Green RJ45 LEDs: Yellow: 10/100 Green: 10/100/1000 Green PoE LED: Indicate PoE present. Green SFP (Fiber) LED: Indicates SFP connection. Features Auto detection and protection of legacy non-PoE cameras/devices. Lifetime Warranty. Temperature Operating Temperature: 60W: -40ºC to 75ºC (-40ºF to 167ºF). 80W: -40ºC to 70ºC (-40ºF to 158ºF). 90W: -40ºC to 60ºC (-40ºF to 140ºF). Storage Temperature: - 40ºC to 75ºC ( - 40º to 167ºF). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 61 BTU/Hr. Operating Altitude - 304.8 to 2,000m.
