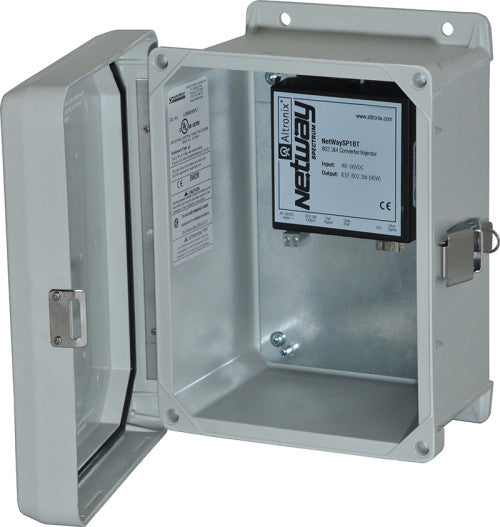

Altronix NETWAYSP1BTWPN 802.3BT CONV/INJECTOR/OUTDOOR
Altronix NetWaySP1BTWPN 802.3bt media converter/injector provides a single 802.3bt (4PPoE) port up to 90W and accommodates Fiber (1000Base-X/SX/LX) or structured cable to transmit data. Units can be deployed with structured cable, conventional single/multimode fiber or composite cable (fiber + copper combined). Cameras/edge devices may be located up to 100m from the unit.
Input
48-56VDC @ 1.9A (95W).
Fiber Port
One (1) 1Gb SFP port.
PoE Port
Single port rated up to 90W max.
IEEE 802.3af, 802.3at and 802.3bt compliant
Data Port
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e and higher.
Distance: up to 100m.
Speed: 10/100/1000 Mbps.
Indicators (LED)
Yellow/Green RJ45 LEDs:
Yellow: 10/100
Green: 10/100/1000
Green PoE LED:
Indicate PoE present.
Green SFP (Fiber) LED:
Indicates SFP connection.
Features
Auto detection and protection of legacy non-PoE cameras/devices.
Compact insulated housing.
Lifetime Warranty.
Temperature
Operating Temperature:
60W: - 40ºC to 75ºC (- 40ºF to 167ºF).
80W: - 40ºC to 70ºC (- 40ºF to 158ºF).
90W: - 40ºC to 60ºC (- 40ºF to 140ºF).
Storage Temperature: - 40ºC to 75ºC ( - 40º to 167ºF).
Relative Humidity: 85% +/- 5%.
Operating Altitude
- 304.8 to 2,000m.
