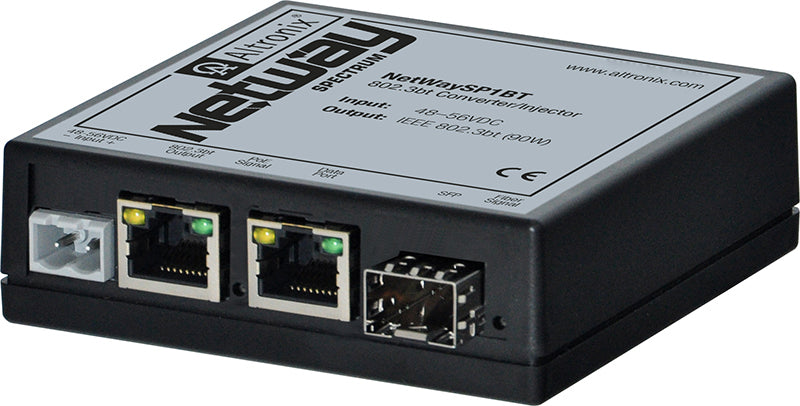

Altronix NETWAYSP1BT 802.3BT POE CONVERTER/INJECTOR
Altronix NetWaySP1BT 802.3bt media converter/injector provides a single 802.3bt (4PPoE) port up to 90W and accommodates Fiber (1000Base-X/SX/LX) or structured cable to transmit
data. Units can be deployed with structured cable, conventional single/multimode fiber or
composite cable (fiber + copper combined).
Input
48-56VDC @ 1.9A (95W).
Fiber Port
One (1) 1Gb SFP port.
PoE Port
Single port rated up to 90W max.
IEEE 802.3af, 802.3at and 802.3bt compliant
Data Port
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e and higher.
Distance: up to 100m.
Speed: 10/100/1000 Mbps.
Indicators (LED)
Yellow/Green LEDs:
IP Link status, 10/100/1000 Base-T/active.
Green PoE LED:
PoE present.
Green SFP (Fiber) LED:
SFP connection.
Features
Auto detection and protection of legacy non-PoE cameras/devices.
Compact insulated housing.
Temperature
Operating (90W): – 40ºC to 75ºC (– 40ºF to 167ºF)
Storage: – 40ºC to 75ºC (– 40ºF to 167ºF)
Relative Humidity: 85% +/– 5%
Operating Altitude
- 304.8 to 2,000m.
