Altronix NETWAY5PWPX 5PT POE+ SW/1000MBPS/LG OUTDR

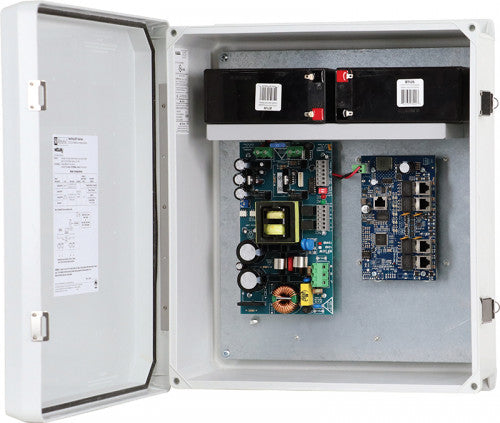

Altronix NETWAY5PWPX 5PT POE+ SW/1000MBPS/LG OUTDR Altronix Netway5PWPX powered hardened PoE+ switch provides power for up to four (4) IP devices, such as PoE access controllers and cameras – utilizing a single Ethernet cable going to the headend. Other applications may include integrating network door access systems with video surveillance. Enclosure accommodates two (2) 12VDC/7AH batteries (proper ventilation is required). Input Voltage: 120VAC, 60Hz, 4.5A Input Fuse: 6.3A/250V Power Output Maximum Power Four (4) 10/100/1000 Mbps PoE/PoE+ (up to 30W) ports or IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant 120W total power Integral surge protection Uplink Port Single data port Ethernet Ports Five (5) 10/100/1000 Mbps ports. Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5 or better structured cable. Distance: up to 100m. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation. LED Indicators Individual PoE On LEDs for each port Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port Battery Charging Type: Sealed lead acid or gel type Failover: Upon AC loss, instantaneous (Batteries are sold separately). (Separate ventilated enclosure is required). Temperature Operating - 30ºC to 70ºC (- 22ºF to 158ºF). Storage: - 40ºC to 85ºC (- 40ºF to 185ºF). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 123 BTU/Hr. Operating Altitude - 304.8 to 2,000m.
