Altronix NETWAY5PQX NETWAY5PX WITH LINQ TECH

Altronix NETWAY5PQX NETWAY5PX WITH LINQ TECH

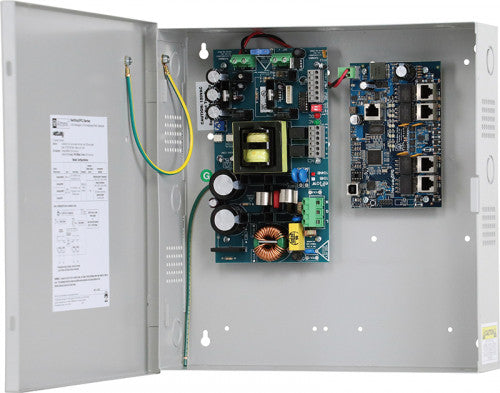

Altronix NetWay5PQX powered hardened PoE+ switch provides power for up to four (4) IP devices, such as PoE access controllers and cameras – utilizing a single Ethernet cable going to the headend. Other applications may include integrating network door access systems with video surveillance. Features embedded LINQ™ Technology to remotely monitor, control, and report power/diagnostics.

Input
Voltage: 120VAC, 60Hz, 4.5A
Input Fuse: 6.3A/250V

Power Output
Maximum Power
Four (4) 10/100/1000 Mbps
PoE/PoE+ (up to 30W) ports or IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant
120W total power
Integral surge protection

Uplink Port
Single data port

Ethernet Ports
Five (5) 10/100/1000 Mbps ports
Connectivity: RJ45, auto-crossover
Wire type: 4-pair CAT5 or better structured cable
Distance: up to 100m
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation

LINQ Technology
Remote network power management allows for device reset and monitoring
Provides local and/or remote access to critical information via LAN/WAN
Email and Windows Dashboard Alert notifications report real-time diagnostics
Event log tracks history

VLAN
Multiple management VLAN assignment
802.1Q Tagged VLAN
Up to 10 VLAN groups. ID Range 2-4095

LED Indicators
Individual PoE On LEDs for each port
Individual IP Link status, 10/100Base-T/active LEDs for each port

Temperature
Operating - 30ºC to 70ºC (- 22ºF to 158ºF)
Storage: - 40ºC to 85ºC (- 40ºF to 185ºF)
Relative Humidity: 85% +/- 5%

Operating Altitude
- 304.8 to 2,000m.
