Altronix NETWAY5PQ MANAGED NETWAY5P

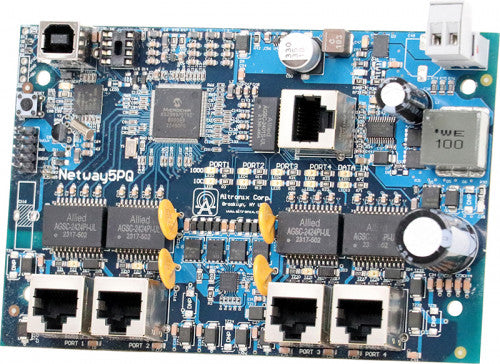

Altronix NETWAY5PQ MANAGED NETWAY5P Altronix Netway5PQ is a space-saving network managed hardened PoE+ switch board that mounts easily inside of Altronix enclosures, improving installation efficiency. It is an ideal solution in all Maximal and Trove series products, providing power for up to four (4) IP devices, such as PoE access controllers and cameras – utilizing a single Ethernet cable going to the headend. Other applications may include solar power, as well as integrating network door access systems with video surveillance. Features embedded LINQ™ Technology to remotely monitor, control, and report power/diagnostics. Input Power 12 or 24VDC from a UL Listed power source or a solar panel with nominal 24V (~12-35V) output. Power Consumption: 6W (0.25A@24V or 0.5A@12V) Power Output Maximum Power Four (4) 10/100/1000 Mbps PoE/PoE+ (rated up to 30W) ports 60W (at 12VDC) or 120W (at 24VDC) total power Integral surge protection Uplink Port Single data port Ethernet Ports Five (5) 10/100/1000 Mbps ports Connectivity: RJ45, auto-crossover Wire type: 4-pair CAT5 or better structured cable Distance: up to 100m. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation LINQ Technology Remote network power management allows for device reset and monitoring Provides local and/or remote access to critical information via LAN/WAN Email and Windows Dashboard Alert notifications report real-time diagnostics Event log tracks history VLAN Multiple management VLAN assignment 802.1Q Tagged VLAN Up to 10 VLAN groups. ID Range 2-4095 LED Indicators Individual PoE On LEDs for each port Individual IP Link status, 10/100Base-T/active LEDs for each port Temperature Operating - 30ºC to 70ºC (- 22ºF to 158ºF). Storage: - 40ºC to 85ºC (- 40ºF to 185ºF). Relative Humidity: 85% +/- 5%. Operating Altitude: -304.8 to 2,000m. Operating Altitude - 304.8 to 2,000m. Mounting hardware is included
