Altronix NETWAY5BTWPN 5PT SW/NO LINQ/NO PS/NEMA4

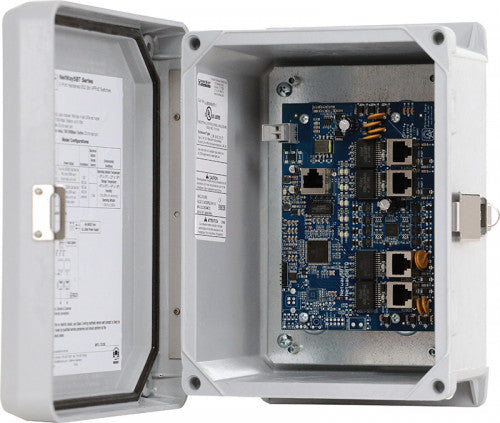

Altronix NETWAY5BTWPN 5PT SW/NO LINQ/NO PS/NEMA4 Altronix NetWay5BTWPN hardened 4PPoE switch provides a network data uplink and four (4) IEEE802.3af/3at/3bt PoE ports rated at 90W each. It can power IP devices, such as PoE access controllers and cameras. Other applications may include integrating network door access systems with video surveillance. Input Power 48-56V UL Listed ITE power supply Power Output Maximum Power: Four (4) 1IEEE802.3af/3at/3bt PoE ports rated at 90W each Integral surge protection Uplink Port: Single data port Ethernet Ports Five (5) 10/100/1000 Mbps ports Connectivity: RJ45, auto-crossover Wire type: 4-pair CAT5e or higher structured cable Distance: up to 100m. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation Indicators (LED) Individual PoE On LEDs for each port Individual IP Link status, 10/100Base-T/active LEDs for each port Temperature Operating Temperature: 240W: – 30ºC to 55ºC (– 22ºF to 131ºF) 180W: – 30ºC to 65ºC (– 22ºF to 149ºF) 150W: – 30ºC to 75ºC (– 22ºF to 167ºF) Storage Temperature: - 40ºC to 85ºC (- 40º to 185ºF) Relative Humidity: 85% +/- 5% Operating Altitude - 304.8 to 2,000m.
