Altronix NETWAY5BTQ 5PT BT SWITCH/LINQ/BOARD

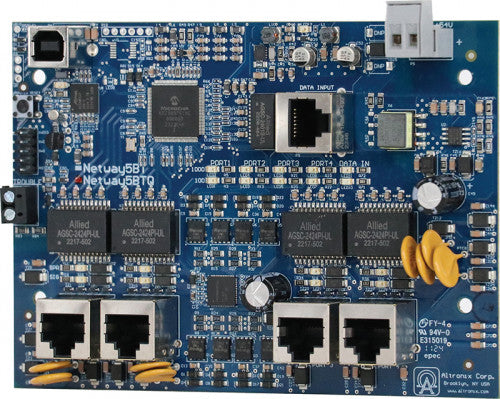

Altronix NETWAY5BTQ 5PT BT SWITCH/LINQ/BOARD Altronix NetWay5BTQ is a space-saving network managed hardened 802.3bt 4PPoE switch board that mounts easily inside of Altronix enclosures, improving installation efficiency. It is an ideal solution in all Maximal and Trove series products, a network data uplink and four (4) IEEE802.3af/3at/3bt PoE ports rated at 90W each, with 240W total power – utilizing a single Ethernet cable going to the headend. Other applications may include integrating network door access systems with video surveillance. Features embedded LINQ™ Technology to remotely monitor, control, and report power/diagnostics. Input Power 48-56V UL Listed ITE power supply Power Output Maximum Power: Four (4) 10/100/1000 Mbps PoE/PoE+ (rated up to 90W) ports 240W total power Integral surge protection Uplink Port: Single data port Ethernet Ports Five (5) 10/100/1000 Mbps ports Connectivity: RJ45, auto-crossover Wire type: 4-pair CAT5e or higher structured cable Distance: up to 100m. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation LINQ Technology Remote network power management allows for device reset and monitoring Provides local and/or remote access to critical information via LAN/WAN Email and Windows Dashboard Alert notifications report real-time diagnostics Event log tracks history VLAN Multiple management VLAN assignment 802.1Q Tagged VLAN Up to 10 VLAN groups. ID Range 2-4095 Indicators (LED) Individual PoE On LEDs for each port Individual IP Link status, 10/100Base-T/active LEDs for each port Temperature Operating Temperature: 240W: – 30ºC to 55ºC (– 22ºF to 131ºF) 180W: – 30ºC to 65ºC (– 22ºF to 149ºF) 150W: – 30ºC to 75ºC (– 22ºF to 167ºF) Storage Temperature: - 40ºC to 85ºC (- 40º to 185ºF) Relative Humidity: 85% +/- 5% Operating Altitude - 304.8 to 2,000m.
