Altronix NETWAY4ELWPX 4P SWITCH/SFP/PS LIPO4/LGNEMA4

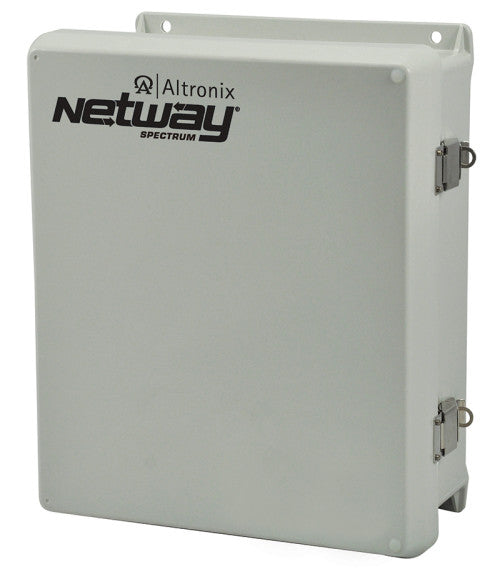

Altronix NETWAY4ELWPX 4P SWITCH/SFP/PS LIPO4/LGNEMA4 Altronix NetWay4ELWPX Outdoor PoE+ Hardened Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports or up to two (2) Hi-PoE (60W) ports. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics from anywhere. These units are designed to support a single 12V LiFePO₄ (Lithium Iron Phosphate) battery for high storage and charge/discharge cycle life reliability. Input 115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A. Power Output four (4) ports PoE+ (30W) or one (1) Hi-PoE (60W) port. IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant. 75W total power. (Note: connected devices in total not to exceed 75W). Integral surge protection. Fiber Port One (1) Gigabit SFP port. Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included). Ethernet Ports 10/100/1000 Mbps ports. Connectivity: RJ45, auto-crossover. Wire type: 4-pair Cat-5 or better structured cable. Distance: up to 100m. Speed: 10/100/1000Mbps, half/full duplex, auto negotiation. Battery Charging Built-in charger for 12V LiFePO₄ (Lithium Iron Phosphate) battery. Caution: Do not use lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. (Batteries are sold separately). Indicators (LED) Individual PoE On LEDs for each port. Individual IP Link status, 10/100/1000Base-T/active LEDs for each port. ALOS LED indicates fiber connection for SFP port. Heartbeat LED indicates proper operation of the unit. LINQ Technology Remote network management allows for camera/device reset and monitoring. Provides local and/or remote access to critical information via LAN/WAN. Email and Windows Dashboard Alert notifications report real-time diagnostics. Event log tracks history. Temperature Operating: 60W: - 40° C to 75° C ( - 40° F to 167° F). 75W: - 40° C to 70° C ( - 40° F to 158° F). Storage: - 40° C to 85° C ( - 40° F to 185° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 61 BTU/Hr. Operating Altitude - 304.8 to 2,000m.
