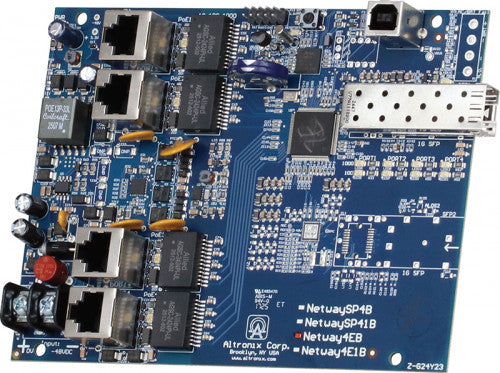

Altronix NETWAY4EB 4PORT POE+ SW 1G SFP BOARD

Altronix NETWAY4EB 4PORT POE+ SW 1G SFP BOARD

Altronix NetWay4EB PoE+ Switch provides provides a 1Gb SFP port and four (4) PoE+ (30W) ports. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control, and report power and diagnostics from anywhere.

Input
48-56V UL Listed ITE power supply (up to 120W)

Power Output
Four (4) 10/100/1000 Mbps PoE/PoE+ (up to 30W) ports.
IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
120W total power.
Integral surge protection.

Fiber Port
One (1) Gigabit SFP port.
Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).

Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair Cat-5 or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.

Indicators (LED)
Individual PoE On LEDs for each port.
Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.

Temperature
Operating: (120W): - 40° C to 75° C (-40° F to 167° F).
Storage: - 40° C to 85° C (-40° F to 185° F).
Relative Humidity: 85% +/- 5%.

Operating Altitude
-304.8 to 2,000m.

LINQ Technology
Remote network management allows for camera/device reset and monitoring.
PoE port management via Dashboard IP management program.
Provides local and/or remote access to critical information via LAN/WAN.
Email and Windows Dashboard Alert notifications report real-time diagnostics.
Event log tracks history.
