Altronix NETWAY4E1BTWPN 4P SW/NO LINQ/SFP/PS/NEMA4

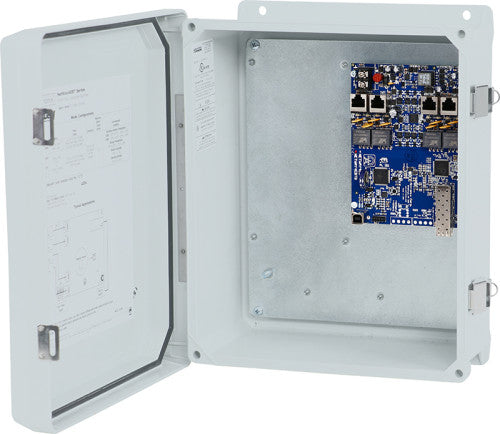

Altronix NETWAY4E1BTWPN 4P SW/NO LINQ/SFP/PS/NEMA4 ltronix NetWay4E1BTWPN supports up to 90W per port (280W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with one (1) 1Gb SFP port to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWay4E1BTWPN accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors. Input Voltage: 48V-57V (UL Listed ITE power supply) Output Four (4) 10/100/1000 Mbps Ethernet ports rated at 90W each (limited to 320W total power). IEEE 802.3af, 802.3at, 802.3bt compliant. SFP Ports One (1) Gigabit SFP port. Ethernet Ports Four (4) 10/100/1000 Mbps ports. Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5e or higher structured cable. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation. Indicators (LED) Individual PoE On LEDs for each port. Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port. ALOS LED indicates fiber connection for SFP port. Heartbeat LED indicates proper operation of the unit. Temperature Operating (240W): –30ºC to 55ºC (–22ºF to 131ºF). Operating (180W): -30ºC to 65ºC (-22ºF to 149ºF). Operating (150W): -30ºC to 75ºC (-22ºF to 167ºF). Storage: -30ºC to 85ºC (-22ºF to 185ºF). Relative Humidity: 85% +/-5%. BTU/Hr. (approx.): 61 BTU/Hr. Operating Altitude - 304.8 to 2,000m.
