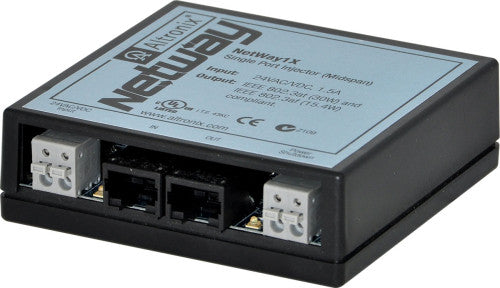

Altronix NETWAY1X 1 PORT MIDSPAN POE/POE+

Altronix NETWAY1X 1 PORT MIDSPAN POE/POE+

Altronix NetWay1X single port midspan PoE/PoE+ compliant power injector provides power and passes data (e.g. video) for PoE/PoE+ compliant devices. Devices may be located up to 100m from NetWay1X. A NetWayXTX repeater module can be utilized to extend the distance
an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on device port requirement. NetWay1X is capable of supporting non-PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.

Input
24VAC @ 1.5A or 24VDC @ 1.5A.

Data
One (1) PoE/PoE+ port provides power and passes data over ethernet (CAT5) cable up to 100m.
Data rate: 10/100 Base-T compliant.

Output Power
Port provides up to 30W max.
IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
Short circuit protection.

Functions
Port status LED.
PoE manual shutdown (For UL 60950-1 applications only).
Auto detection and protection of legacy non-PoE cameras/devices.

Temperature
Operating:
48VDC, 30W: 0° C to 45° C (32° F to 113° F).
24VAC, 30W: 0° C to 37° C (32° F to 98.6° F).

Storage:
- 20° to 70° C (-4° to 158° F).

Relative Humidity 85% +/- 5%.

Operating Altitude
- 304.8 to 3048m ( - 1000 to 10,000 ft.).
