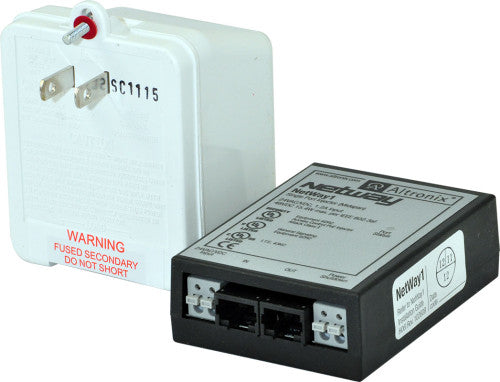

Altronix NETWAY1P 1 PORT MIDSPAN POE W/TP2440

Altronix NETWAY1P 1 PORT MIDSPAN POE W/TP2440

Altronix NetWay1 single port midspan PoE-compliant power injector provides power and passes data (e.g. video) for PoE-compliant devices. Devices may be located up to 100m from NetWay1. A NetWayXT repeater module can be utilized to extend the distance for an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on device port requirement. NetWay1 is capable of supporting non-
PoE compliant fixed IP cameras by utilizing NetWay1512 adapter. Altronix TP2440 UL Listed plug-in transformer provides 24VAC with 1.67A output current.

Input
24VAC @ 1.2A or 24VDC @ 1.2A.
TP2440 plug-in transformer (included).

Output
48VDC, up to 15.4W max.
IEEE 802.3af compliant.
Short circuit protection.

Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e.
Distance: up to 100m.
Speed: 10/100BaseT, half/full duplex, auto negotiation.

Indicators (LED)
Red LED: Port status.
Yellow and Green LED (by RJ45 jack):
IP Link status, 10/100Base-T/active.

Temperature
Operating:
UL60950-1: 0° C to 40° C (32° F to 104° F).
UL294: 0° C to 49° C (32° F to 120.2° F).

Storage:
- 20° to 70° C (-4° to 158° F).

Relative Humidity 85% +/- 5%.

Operating Altitude
- 304.8 to 3048m ( - 1000 to 10,000 ft.).
