Altronix NETWAY1DWP OUTDOOR HI-POE MIDSPAN

Altronix NETWAY1DWP OUTDOOR HI-POE MIDSPAN

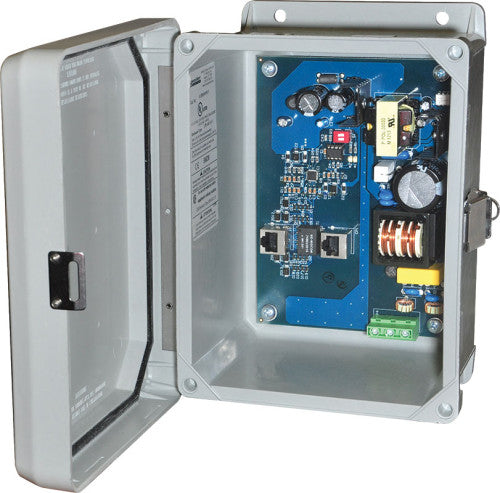

Altronix NetWay1DWP outdoor single port midspan injector provides Hi-PoE (60W), PoE (30W), and PoE (15W). The unit is ideal for use with outdoor IP cameras and PTZs, WiMAX modems and WLAN access points. NetWay1DWP features a lightweight NEMA 4/4X IP66-11 rated enclosure that can be wall or pole mounted. The unit operates at 115VAC or 230VAC input. Model NetWay1DWPH features enclosure with three (3) 5/8" wiring inlets and includes NEMA rated wire glands.

Input
115VAC, 60Hz, 1.2A or 230VAC, 50/60Hz, 0.75A.

Power Output
Maximum power: Hi-PoE (60W). Power product using all 4 pairs for 60W.
IEEE 802.3at (30W) & IEEE 802.3af (15W) compliant.
Integral surge protection.

Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair Cat5e or higher cable.
Distance: up to 100m.
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.

Indicators (LED)
LED 1: PoE active..
LED 2: AC Power present.
Yellow and Green LEDs (by RJ45 jack):
IP Link status, 10/100Base-T/active.

Temperature
Operating:
30W: - 30° C to 70° C ( -22° F to 158° F).
60W: - 30° C to 55° C ( -22° F to 131° F).

Storage:
- 30° C to 85° C ( -22° F to 185° F).

Relative Humidity 85% +/- 5%.
System AC input VA requirements:
115VAC: 138VA.
230VAC: 172.5VA.

Operating Altitude
- 304.8m. to 609.6m.
