Altronix NETWAY1BT SINGLE PORT 90W 3bt INJECTOR
Highlight title
Text to highlight a key feature of your product
Description
Description
Altronix NETWAY1BT SINGLE PORT 90W 3bt INJECTOR

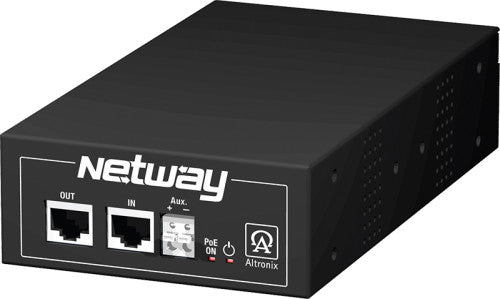

Altronix NetWay1BT Single Port Midspan Injector provides 802.3bt (90W) power and passes data for PoE compliant device. PoE device may be located up to 100m from the unit.
Input
115VAC, 60Hz, 1.2A or 230VAC, 50/60Hz, 0.75A.
Power Output
IEEE802.3bt compliant
Unit provides PoE / PoE+ / Hi PoE.
90W full power
Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000 BaseT, half/full duplex, auto negotiation.
Indicators (LED)
Red LED:
PoE ON.
Red LED:
Power ON.
Yellow and Green:
LED (by RJ45 jack): IP Link status, 10/100Base-T/active.
Environmental
Operating Temperature:
30W: - 30° C to 75° C ( - 22° F to 167° F).
60W: - 30° C to 70° C ( - 22° F to 158° F).
90W: - 30° C to 55° C ( - 22° F to 131° F).
Storage:
- 30° C to 85° C ( - 22° F to 185° F).
Relative Humidity 85% +/- 5%.
Operating Altitude
- 304.8m to 609.6m.
