Altronix NETWAY161G 16PORT POE+ MIDSPN 480W

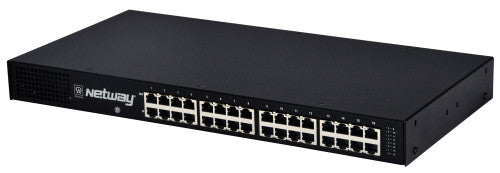

Altronix NETWAY161G 16PORT POE+ MIDSPN 480W Altronix NetWay161G is a 16-port midspan in a 1U rack enclosure. It provides PoE/PoE+ (up to 30W power per port), and passes data at 10/100/1000 Mbps at distances up to 100m. Features also include an integral battery charger for applications requiring backup. Input 115VAC, 60Hz, 5.5A or 230VAC, 50/60Hz, 3.0A. Power Unit provides PoE / PoE+ 30W full power per port Total power: 480W Ethernet: Connectivity: RJ45, auto-crossove Wire type: 4-pair CAT5e or better structured cable Distance: up to 100m Speed: 10/100/1000 BaseT, half/full duplex, auto negotiation Functions Auto detection and protection of legacy non-PoE cameras/edge devices. Indicators (LED) Yellow and Green LED (by RJ45 jack): IP Link status, 10/100/1000 Base-T/active. Green LED: Port status. Red LED: Power. Battery Charging Built-in battery charger (optional rack mount battery enclosure - RE2). Automatic switchover to stand-by battery when AC fails. (Batteries are sold separately). Temperature Operating: - 20° C to 50° C ( - 4° F to 122° F). Storage: - 20° to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 245 BTU/Hr. Operating Altitude: Up to 2,000m.
