Altronix NETWAY112X SINGLE PT 30W INJECTOR/12V IN

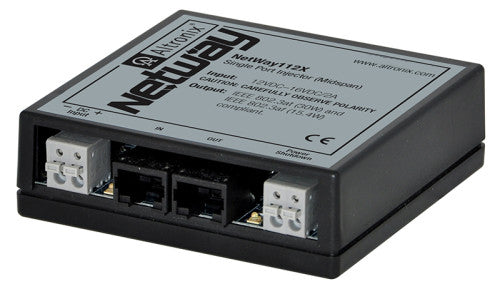

Altronix NetWay112X single port midspan/injector provides power and passes data (e.g. video) for PoE/PoE+ compliant devices. Devices may be located up to 100m from NetWay112X. A NetWayXTX repeater module can be utilized to extend the distance for an additional100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on device port requirement. NetWay112 is capable of supporting non-PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.
Input
12VDC to 16VDC at 2A
Output
48VDC, up to 30W max.
IEEE 802.3at and IEEE 802.3af compliant.
Short circuit protection.
Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e.
Distance: up to 100m.
Speed: 10/100BaseT, half/full duplex, auto negotiation.
Indicators (LED)
LED: Power/Port status.
Yellow and Green LED (by RJ45 jack): IP Link status, 10/100Base-T/active.
Temperature
Operating: 0° C to 40° C (32° F to 104° F).
Storage: - 40° C to 70° C (-40° to 158° F).
Relative Humidity 85% +/- 5%.
Operating Altitude
- 304.8 to 3,048m ( - 1,000 to 10,000 ft.).
