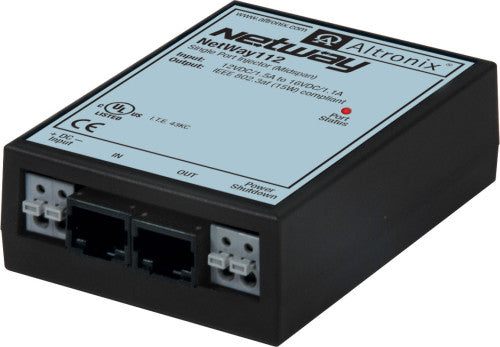

Altronix NETWAY112 1 PORT MIDSPAN POE 12VDC

Altronix NETWAY112 1 PORT MIDSPAN POE 12VDC

NetWay112 is a single port midspan PoE compliant power injector that provides power and passes data (e.g. video) for PoE compliant devices. Devices may be located up to 100m from NetWay112. A NetWayXT repeater module can be utilized to extend the distance an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on device portrequirement. NetWay112 is capable of supporting non-PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.

Input
12VDC/1.5A to 16VDC/1.1A.

Data
One (1) PoE port provides power and passes data over ethernet (CAT5) cable up to 100m.
Data rate: 10/100 Base-T compliant.

Output Power
Port provides up to 15.4W max.
IEEE 802.3af (15W) compliant.
48VDC.
Short circuit protection.

Features
PoE status LED.
PoE shutdown feature allows for cameras and/or edge devices to be reset.
Auto detection and protection of legacy non-PoE cameras/devices.

Temperature
Operating: 0° C to 40° C (32° F to 104° F).
Storage: - 40° C to 70° C (-40° to 158° F).
Relative Humidity 85% +/- 5%.

Operating Altitude
- 304.8 to 3,048m ( - 1,000 to 10,000 ft.).
