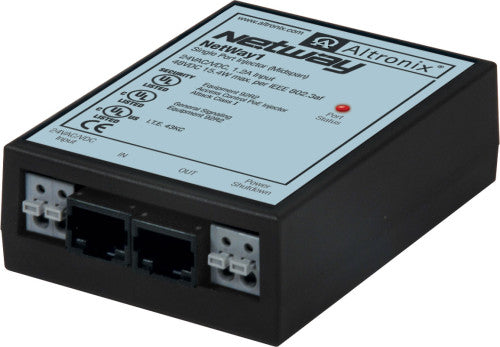

Altronix NETWAY1 1 PORT MIDSPAN POE
Altronix NetWay1 single port midspan PoE-compliant power injector provides power and passes data (e.g. video) for PoE-compliant devices. Devices may be located up to 100m from NetWay1. A NetWayXT repeater module can be utilized to extend the distance for an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on device port requirement. NetWay1 is capable of supporting non-
PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.
Input
24VAC @ 1.2A or 24VDC @ 1.2A.
Data
One (1) PoE port provides power and passes data over ethernet (CAT5) cable up to 100m.
Data rate: 10/100 Base-T compliant.
Output Power
Port provides up to 15.4W max.
IEEE 802.3af compliant.
48VDC.
Short circuit protection.
Functions
Port status LED.
PoE manual shutdown (For UL 60950-1 applications only).
Auto detection and protection of legacy non-PoE cameras/devices.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Operating Altitude
- 304.8 to 3,048m ( - 1000 to 10,000 ft.).
