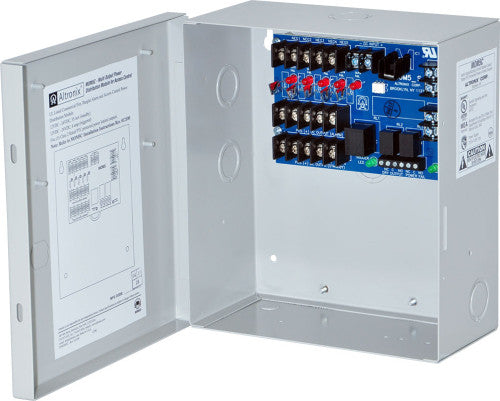

Altronix MOM5C MULTI-OUT P/S INTERFACE W/CAB

Altronix MOM5C MULTI-OUT P/S INTERFACE W/CAB

Altronix MOM5C power distribution module converts one (1) non power-limited DC voltage input to five (5) power-limited outputs. Each output will route power to a variety of access control hardware and devices which includes Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both fail-safe and fail-secure modes. Controlled trigger input is achieved through normally open (NO) or normally closed (NC) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay will enable HVAC Shutdown, Elevator Recall or trigger auxiliary devices.

Input
12VDC or 24VDC from power supply.

Output
12VDC or 24VDC selectable outputs.
Five (5) individual Class 2 Rated PTC protected power-limited outputs (auto-resettable).
Current limit is 2A @ 12VDC or 24VDC per output.

Fire Alarm Interface
Fire Alarm Panel or Access Control System trigger inputs, (N.O. or N.C. supervised trigger input and polarity reversal trigger input).

Visual Indicators
Red LED's indicate condition of each power output.
Power & input trigger LED's.

Supervision
Fire Alarm Panel or Access Control System trigger inputs. (NO or NC supervised trigger input and polarity reversal trigger input).
Power fail supervision relay (Form "C" contact rated 1A @ 28VDC).
Interfaces with most UL Listed Power Supplies

Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
